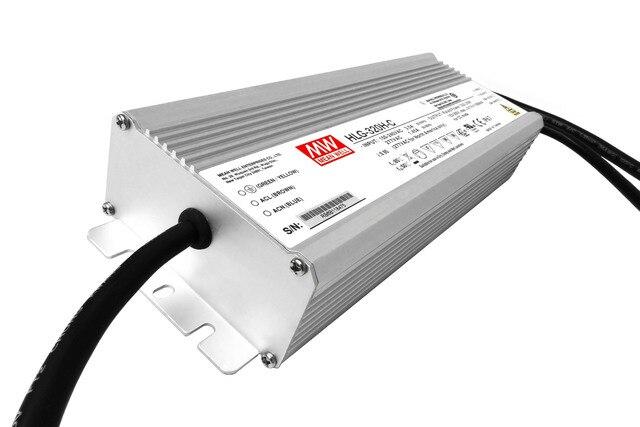

Mean Well HLG-320H-C2100B
Save 9%
Original price
$109.00
Current price
$99.00
.
Features
*The listed price currently includes the increased 25% "trade war" tariff
Mean Well's HLG-C series drivers are especially great for running COB arrays or a high number of LEDs in series
This driver can be dimmed with an external controller/potentiometer. Not attaching anything to the dimming wires will run the driver at 100% current output (2100mA)
A power cord does not come with the driver and will need to be purchased separately
Specifications
SKU : HLG-320H-C2100B
Output Voltage (DC) : 76-152V (~3-4 X 36V COBs Or ~25-50 X 3V LEDs)
Max Output Current : 2100mA
Input Voltage (AC) : 90-305VAC
AC Current : 3.5A/115VAC, 1.65A/230VAC
Dimming Signal : 0-10V Analog, 10V PWM, Resistance
Efficiency : 94%
Dimensions : 9.95" X 3.55" X 1.73"
Weight : 4.15 lbs
Instructions
Features
*The listed price currently includes the increased 25% "trade war" tariff
Mean Well's HLG-C series drivers are especially great for running COB arrays or a high number of LEDs in series
This driver can be dimmed with an external controller/potentiometer. Not attaching anything to the dimming wires will run the driver at 100% current output (2100mA)
A power cord does not come with the driver and will need to be purchased separately
Specifications
SKU : HLG-320H-C2100B
Output Voltage (DC) : 76-152V (~3-4 X 36V COBs Or ~25-50 X 3V LEDs)
Max Output Current : 2100mA
Input Voltage (AC) : 90-305VAC
AC Current : 3.5A/115VAC, 1.65A/230VAC
Dimming Signal : 0-10V Analog, 10V PWM, Resistance
Efficiency : 94%
Dimensions : 9.95" X 3.55" X 1.73"
Weight : 4.15 lbs
